K7C
KICKPI-K7C Quad-core 64-bit Cortex-A72 X4 + Cortex-A53 X4, processor RK3576, Support efficient secondary development and independent customization
- Strong Core Power: Cortex-A72 X4 + Cortex-A53 X4.Mali-G52 GPU, enjoy smooth graphics processing. Supported by 6TOPS NPU, it offers powerful computing.
- High-speed Interconnection: 4G/5G full network compatibility, smooth connection to mobile networks anytime and anywhere. Dual Gigabit Ethernet, wired dual channels, stable and low latency;
- Multi-screen Intelligent Control, free Expansion: HDMI 4K@120Hz, the first choice for ultra HD large screen; 4K@120Hz,one-line direct connection, efficient and convenient MIPI-DSI 1080P@60Hz, compatible with mobile devices
- Efficient secondary development and independent customization: Embedded operating system underlying drivers, providing technical information
- Widely applicable fields: Widely applicable to IoT gateways, customized markets for industries such as NVR storage, industrial control tablets, industrial testing, and in-car central control.

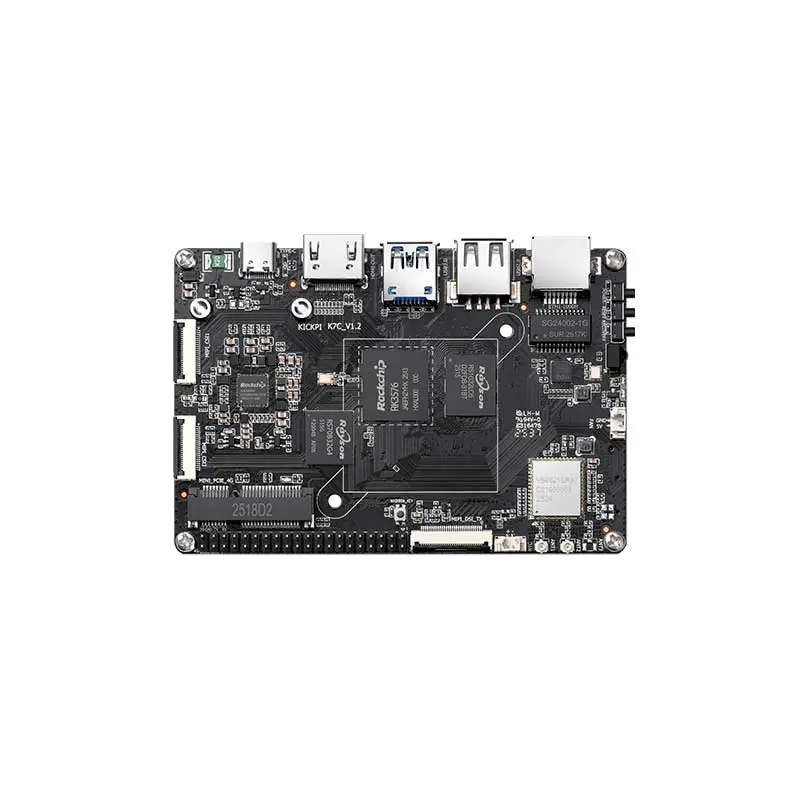

KICKPI-K7C is a development board based on the Rockchip RK3576 main control chip. It has a Cortex-A72 X4 + Cortex-A53 X4 processor, low power consumption, and high performance. It supports various communication methods, such as a 4G mobile network, dual gigabit to a large network, dual-band WIFI, etc. It has stable communication, faster speed, and is suitable for various scene requirements.
Key Features:
- CPU: Cortex-A72 X4 + Cortex-A53 X4
- GPU: Mali G52 MC3
- NPU: RKNN 6 Tops
- Memory: 4G / 8G
- Storage: 32G / 64G
- Systems Supported: Android 14.0 / Debian 12 / Ubuntu 2404
Application:
- Commercial Display
- Medical Technology
- Internet of Things
- Industrial Control
- AI Intelligence
- Industrial Inspection

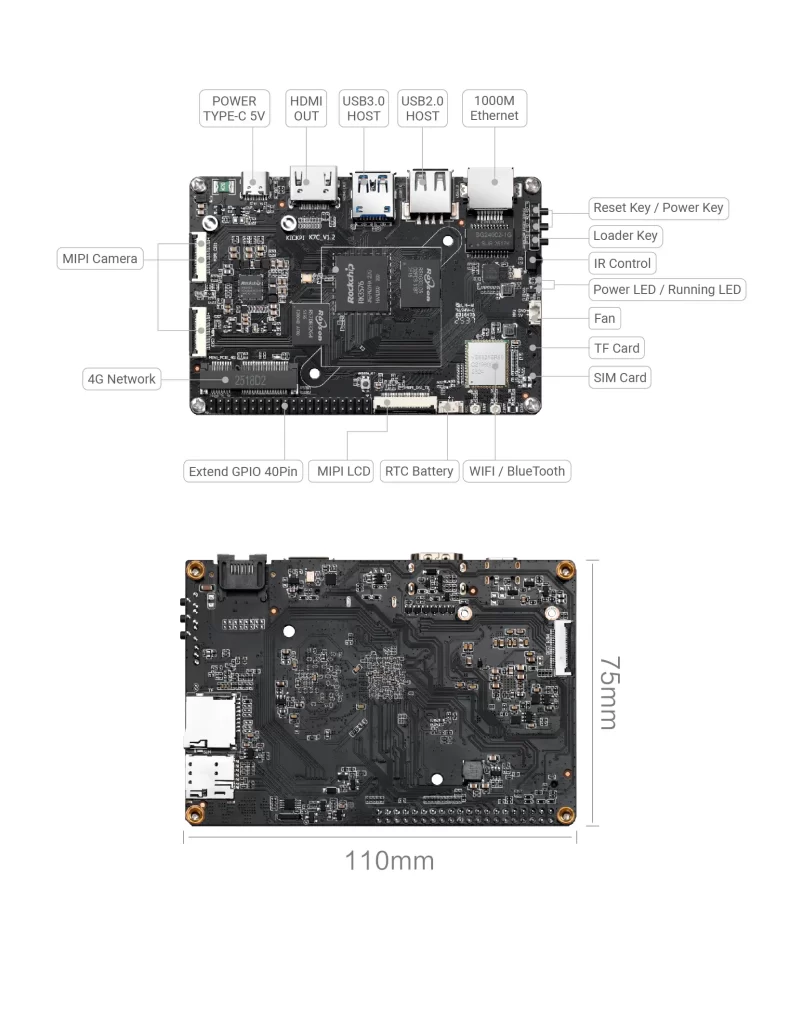

Hardware interface:
Hardware spec:
| Function | Main Parameter |
| Main Controller | Rockchip RK3576 |
| CPU | Quad Cortex-A72 and quad Cortex-A53 |
| GPU | Mali G52 MC3 |
| NPU | RKNN 6 Tops |
| Memory | 4G / 8G |
| Storage | 32G / 64G |
| Systems Supported | Android 14.0 / Debian 12 / Ubuntu 2404 |
| Power Supply | TYPE-C 5V |
| Cooling Fan | Y ( 5V Power ) |
| LED Light | * Power LED * Work LED |
| USB HOST | * USB 2.0 HOST X1 * USB 3.0 HOST X1 |
| USB OTG | USB 2.0 OTG X1/USB Debug |
| Infrared Receiver | Y |
| Real-Time Clock | Y ( HYM8563 ) |
| Debug Serial Port | Y |
| Buttons | * Recovery KEY * RESET KEY * MASKROM KEY * POWER KEY |
| Expansion Pins | Extend Pin Total 40Pin : * UART X4 * SPI X1 * PWM X7 * ADC X3 * 12C X2*13C X1 *GPIOX23*PDMX1 *CANX1*USBX1 |
| HDMI Display | X1 ( up to 4K @ 60Hz ) |
| MIPI DSI Display | X1 ( up to 1920*1080 @ 60Hz) |
| MIPI CSI Camera | 4 Lane X3 |
| Speaker | N |
| Headphones | N |
| Microphone | N |
| WIFI/Bluetooth | Y ( VS6621SR80 ) |
| Ethernet | 1000M X1 |
| 4G Mobile Network | Y (4G EC20 / EC200) |
| TF Card | Y |
| M.2 Hard Drive | N |
