K2C
KICKPI K2C Development Board, Allwinner H618 Quad-core Cortex-A53 64 Bit Single Board Support Customization
- Quad-core 64-bit Processor: Quad-core 64-bit Cortex-A53 processor Allwinner H618. Main frequency up to 1.5 GHz, low power consumption and high performance;
- Powerful Network Communication Function: Equipped with a 100 Mbps high-speed network interface, Wi-Fi 5 and Bluetooth 5.0 have stable communication and faster speed;
- 4K Video Decoding: 4K@60fps Video decoding, supports HDMI display interface;
- Supports Multiple System Operations: Supports two major systems, Android 12.0 and Ubuntu 22.04, provides system call API reference code;
- Widely Applicable Fields: Mainly targeting the customized market for set-top boxes, karaoke machines, video conferencing terminals, projectors, and other industries.
- Efficient Secondary Development and Independent Customization: Embedded operating system underlying drivers, providing technical information, and Engineer one-on-one service enables users to efficiently perform secondary opening

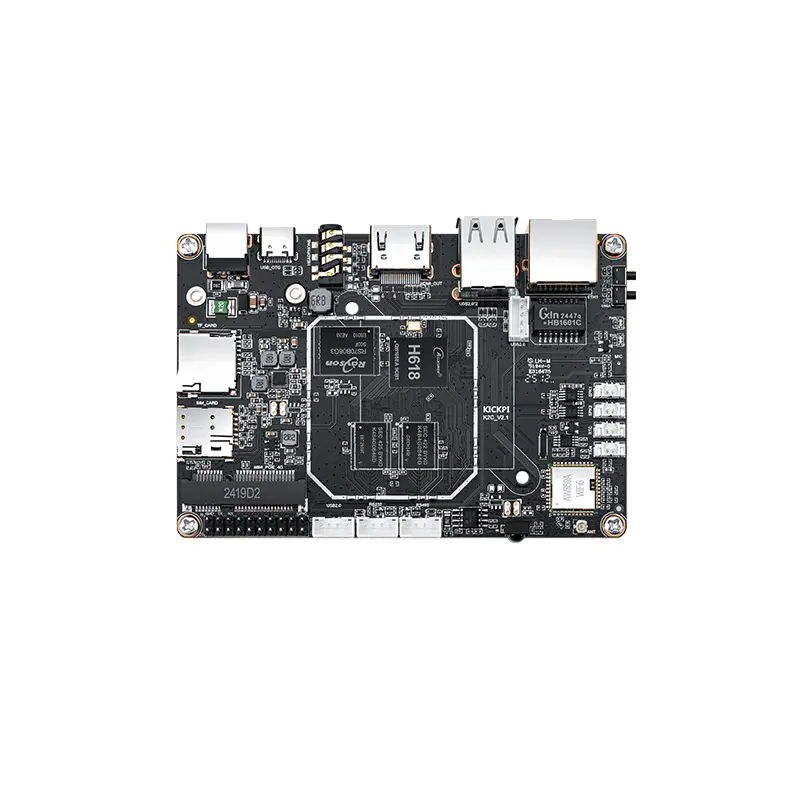

KICKPI-K2C is a development board based on the Allwinner H618 main control chip, with a quad-core 64-bit Cortex-A53 processor, main frequency up to 1.5 GHz, low power consumption, and high performance. Equipped with a 100 Mbps high-speed network interface and Bluetooth 5.0, communication is stable and faster, suitable for a variety of scenarios.
Application Direction
- IoT Smart Internet of Things
- Commercial display
- AI artificial intelligence
- Industrial control
- Medica Technology
- Industrial Inspection
Key Features:
- CPU: 64bits Quad-core Arm Cortex-A53 Allwinner H618
- Memory: 2GB
- Storage: 8GB
- Systems Supported： Android 12.0 / Ubuntu 22.04
- Power Supply： DC 12V

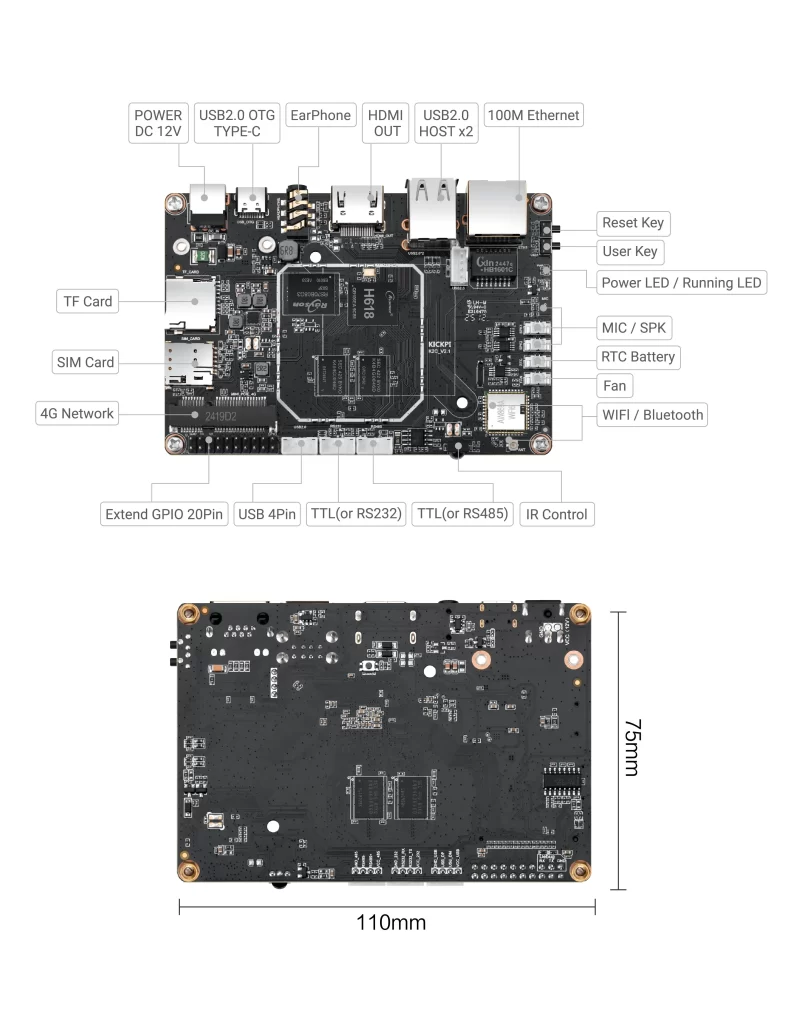

Hardware Interface:
Hardware Spec:
| Type | Main Specifications |
| Soc | Allwinner H618 |
| CPU | ARM Cortex-A53 x4 (up to 1.5GHz) |
| GPU | Mali G31 MP2 |
| Memory | 2GB / 4GB |
| Storage | 16GB/ 32GB / 64GB |
| Systems Supported | Android 12.0 / Ubuntu 22.04 / Armbian |
| Power Supply | DC 12V |
| LED Light | * Power LED * Work LED |
| USB HOST | USB 2.0 x2 |
| USB OTG | USB 2.0 x1 |
| Infraed Receiver | Y |
| Debug Serial Port | Y |
| Buttons | * Recovery KEY * RESET KEY * FEL KEY |
| Extended Pins | Extend Pin Total 20 Pin: * UART x2 * GPIO x15 * I2C x2 * SPI x1 * I2S x1 * PWM x2 |
| HDMI Display | x1 (up to 4K@60Hz) |
| SD-Card | Y |
| Ethernet | 100M |
| WIFI/Bluetooth | Y (VS6621S40) |
| MIC | Y |
| SPK | Y |
| Earphone | Y |
| RTC | Y |
