K3B
KICKPI-K3B ARM A53 X4, processor RK3562, Meet the product needs of Different Industries
- Powerful Core Performance: Cortex-A53 X4 CPU,2.0GHz; Mali-G52 GPU, smooth graphics processing; Powerful computing power with 1 TOPS NPU;
- Powerful network communication function: ยท Gigabit Ethernet, wired channel, stable, and low latency; Dual-band Wi-Fi and Bluetooth, smoother 2.4G/5G transmission;
- Multi-screen Intelligent Control,Free Expansion: MIPI-DSI 1080P@60Hz, compatible with mobile devices.LVDS 720P@60Hz, stable output for industrial screens;
- Supports multiple system operations: Supports Android 13.0/Debian 11/Ubuntu 20.04. Three major systems provide system call API reference code, perfectly supporting customer upper-level application APP development and SDK.
- Efficient secondary development and independent customization: Embedded operating system underlying drivers, providing technical information and engineer one-on-one service, enables users to efficiently perform the secondary opening
- Widely applicable fields: It is widely used in commercial tablet computers, video conferences, smart homes, educational electronics, and medical equipment, and can meet the product needs of different industries.

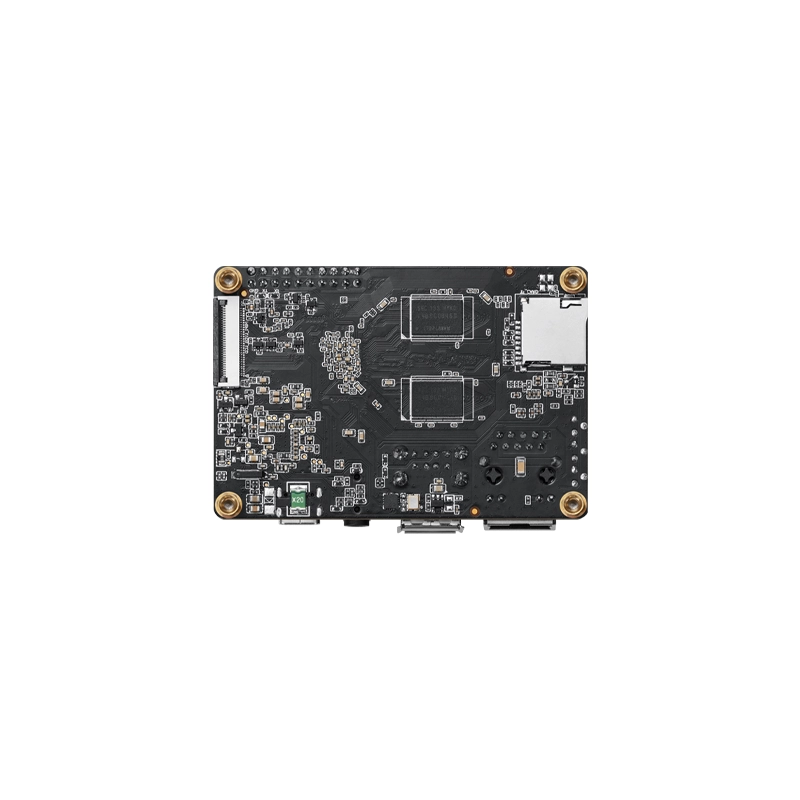

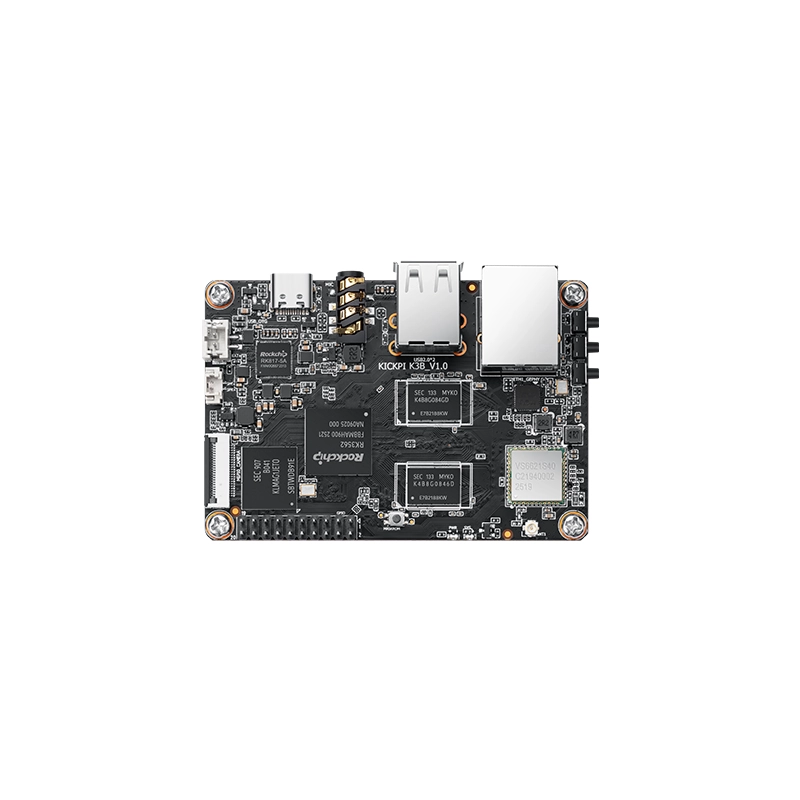

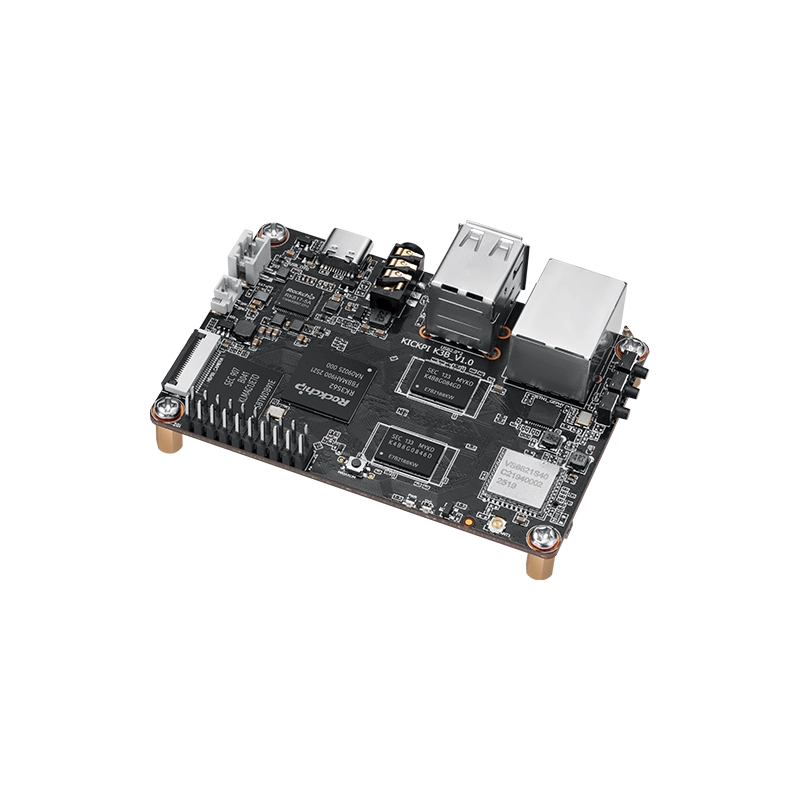

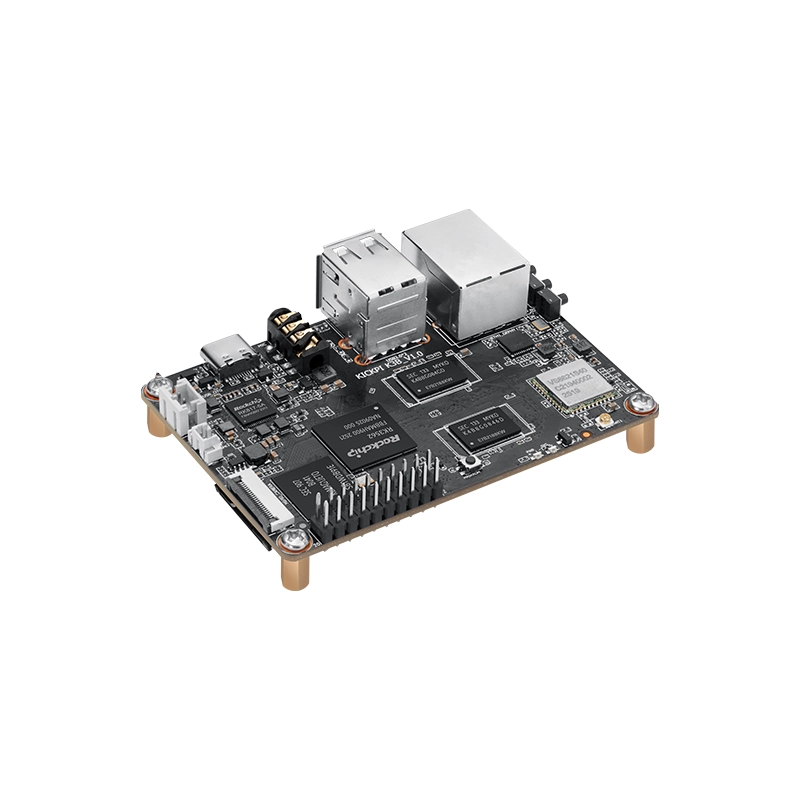

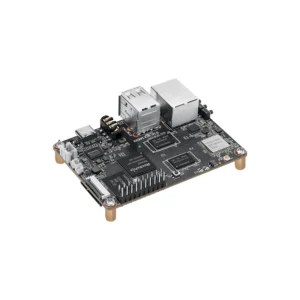

KICKPI-K3B is a development board based on Rockchip RK3562, the main control chip. It has a Cortex-A53 X4 CPU,2.0GHz; Mali-G52 GPU, smooth graphics processing; powerful computing power with 1 TOPS NPU, low power consumption, and high performance. The board supports Gigabit Ethernet, wired channel, stable, and low-latency dual-band Wi-Fi and Bluetooth, smoother 2.4 G/5G transmission, faster speed, suitable for various scene requirements.ย
Application direction
- LoT Smart Internet of Things
- Commercial display
- Industrial control
- AI artificial intelligence
- Medical technology
- Industrial Inspection
Keyย Features:
- CPU: ARM A53 X4
- GPU: Mali G52 2EE
- NPU: RKNN 1 Tops
- Memory: 2GB / 4GB
- Storage: 16GB / 32GB / 64GB
- Systems Supported: Android 13.0 / Debian 11 / Ubuntu 20.04
Hardware interface:
Hardware Spec:
| Type | Main Specifications |
| Soc | Rockchip RK3562 |
| CPU | ARM A53 X4 |
| GPU | Mali G52 2EE |
| NPU | RKNN 1 Tops |
| Memory | 2GB / 4GB |
| Storage | 16GB/ 32GB / 64GB |
| Systems Supported | *Android 13 *Debian11 *Armbian *Ubuntu 20.04 |
| Power Supply | TYPE-C 5V |
| Battery POWER | Y |
| LED Light | *Power LED *Running LED |
| USB HOST | USB2.0 TYPE-A ร2 |
| USB OTG | USB2.0 TYPE-C |
| Debug Serial Port | Y |
| KEY | *RESET KEY *POWER KEY *RECOVERY KEY *MASKROM KEY |
| Extended Pins | *GPIO ร12 *UART ร2 *SPI ร1 *PWM ร1 *I2C ร1 |
| MIPI DSI LCD | ร1 / 2048ร1080@60Hz |
| Single LVDS LCD | ร1 / 800ร1280@60Hz |
| MIPI CSI CAMERA | 4 Lane ร1 |
| SPK | ร1 |
| EarPhone | Audio input/output |
| WIFI / BT | VS6621S40 |
| Ethernet | 1000M x1 |
| TF Card | Y |
